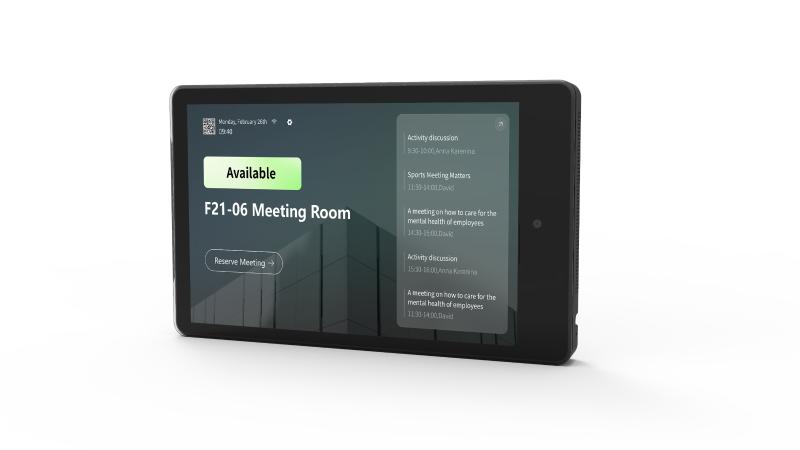

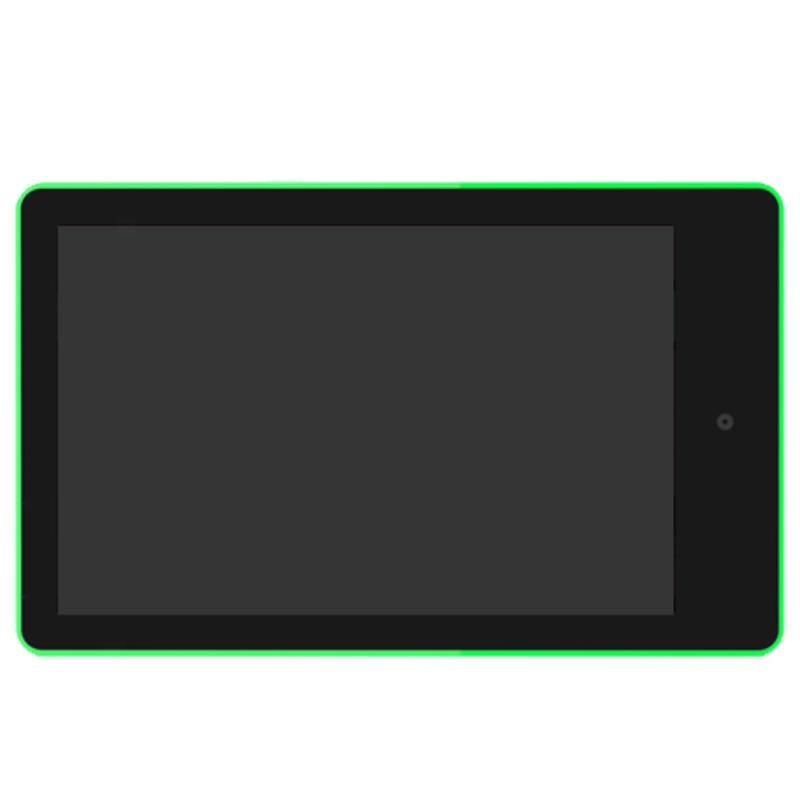

Hikvision 10-inch Scheduling Panel DS-D5F10CB/BH

Specifications

Product Model: DS-D5F10CB/BH; Screen Size: 10.1 inch; Brightness: 250 cd/m²; Viewing Angle: 170°(H)/170°(V); Physical Resolution: 1280 × 800; Touch point: 10; Processor: 4 cores ARM Cortex-A55; Memory: 2 GB; Built-in storage: 16 GB; Operation System: Android 11.0; Camera: 2 MP WDR Camera; Card Reader: NFC,13.56MHz, (ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica）; Mic Function: Include; Loudspeaker: 8 Ω，2 W × 2; Data transmission interface: Micro USB OTG × 1;USB 3.0 × 1
Access control linkage interface × 1; 3.5mm Audio × 1; Network interface: RJ45, 1000 M LAN (IEEE802.3at，PoE 56-57V，class 4，25.5W); Bluetooth: BT4.1; Indicator: LED; Power: 12 VDC, 1.5 A; Product Dimensions: 275*170*25mm; Mounting Type: Wall mounting; Power Consumption: 18 W; Net Weight: 1.5 kg; Package Dimensions: 390*220*68mm; Gross Weight: 3.7 kg; Packing List: Power adapter × 1, Access control linkage line × 1, Quick start guide × 1, Screw kit × 1, Micro USB Cable× 1, Compliance Manual× 1; Operation Humidity: 0%~95%; Storage Temperature: -40 ℃~85 ℃; Opration Temperature: 0 ℃~40 ℃
