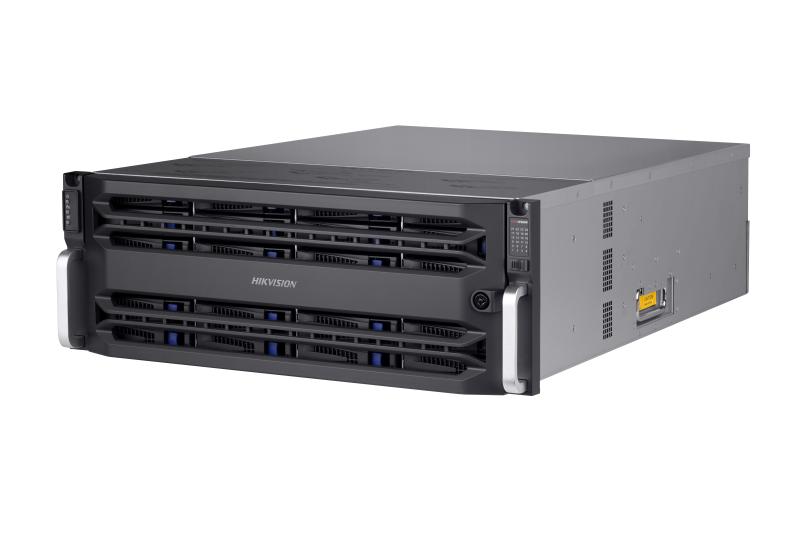

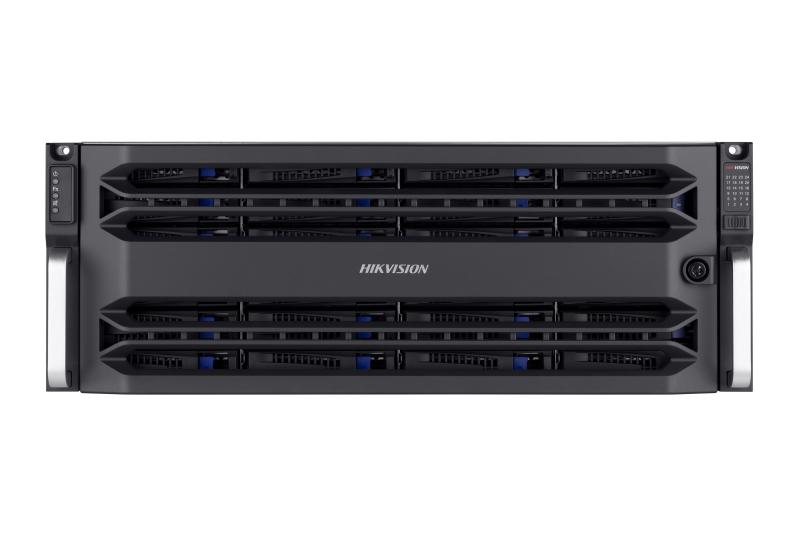

Hikvision DS-A83024S

Specifications

Recording mode: video (2 Mbps) + picture: 1024-ch; Picture performance: 200; Video performance: 1024; Protocol: iSCSI, RTSP, ONVIF, PSIA; USB: 2*USB3.0，1*USB2.0; Data network interface: 4, 1000M Ethernet interface (4 × 1GbE or 2 × 10GbE is extendable); MiniSAS interface: Supported; Controller Parameters: SAS Interface (Upper-level); COM: 1, for HyperTerminal or UPS; Management network interface: 1, 100M Ethernet interface; HDD slot: 24; Interface/capacity: SATA/1TB, 2TB, 3TB, 4TB, 6TB,8TB,10TB,12TB,14TB,16TB; Hot-swapping: Supported; HDD support: RAID(Enterprise Hard Disk); RAID: RAID 0, 1, 3, 5, 6, 10, 50, JBOD, hot spare; Structure: Controller; Processor: Dual 64-bit multi-core processor; Cache: 16 GB (extendable to 384 GB); Disk management: Disk inspection, alarm and repair; Logical volume management: iSCSI volume, video volume management; Recording mode: Timing recording, manual recording, dual-stream recording, alarm recording; Video protection: Lock key video, N+1 service protection, ANR, video loss detection and alarm; Searching mode: Search by time and event; Downloading mode: Quick download, batch download, download by segment, download by merging; Management mode: Web-based GUI, serial port CLI, centralized management of multiple devices; Alarm mode: Sound, light, email, message, web page; Log downloading: Download no web page; HDD Model: Hikvision,DS40HKAI-VX1,4T;
Hikvision,DS60HKAI-VX1,6T;
Hikvision,DS80HKAI-VX1,8T;
Hikvision,DS100HKAI-VX1,10T;
Hikvision,DS160HKAI-VX1,16T;; Power supply: Redundancy (1 + 1); Chassis: 19-inch 4U; Consumption(with HDDs): Operating: ≤ 410 W (1398 BTU with 24 HDDs Rated: ≤ 875 W; Environment temperature: Operating: 5 °C to 35 °C (41 °F to 95 °F) Storing: -20 °C to +70 °C (-4 °F to +158 °F); Humidity: Operating: 20% to 80% RH (non-condensing/frozen) Storing: 5% to 90% RH (non-condensing/frozen); Dimensions(W × D × H): 484 x 724 x 174 (19.1 x 28.5 x 6.9 in); Weight (without HDDs): ≤ 40 kg (88.2 lb)
