Next generation hardware platform featuring high level new controller design (48 HDD slot, single controller with two 6-core processors, 64 GB cache); Streaming data management structure for high system performance; Storage virtualization/distribution/scale-out/load balance; High speed data rebuild at up to 2 TB/ hour; able to tolerate up to 4 device failure without data loss; Ultra-fault-tolerant IRAID (based on erasure code) supporting data protection among devices; User-friendly operation and maintenance
Storages
Hikvision DS-A83048S-ICVS
Next generation hardware platform featuring high level new controller design (48 HDD slot, single controller with two 6-core processors, 64 GB cache); Streaming data management structure for high system performance; Storage virtualization/distribution/scale-out/load balance; High speed data rebuild at up to 2 TB/ hour; able to tolerate up to 4 device failure without data loss; Ultra-fault-tolerant IRAID (based on erasure code) supporting data protection among devices; User-friendly operation and maintenance
Specifications
Cache protection: Supports customizing BBU in case of unexpected power failure to protect the cache data from being lost; Disk management: Disk detection pre-alarm and repair; Management mode: GUI based on web, serial port CLI, platform; Alarm mode: Audio, indicator, GUI; CVA: Device access, recording schedule, and stream forwarding services; CVS: Data storage, video/picture access, storage space, and data R/W services; Protocol: RTSP;ONVIF;PSIA; Interface/capacity: SATA 4TB, 6TB,8TB,10TB,12TB,14TB,16TB; HDD slot: 48; RAID: I RAID: N + M: K, N + M ≤ 16, M ≥ K, N∈[1, 15], M∈[1, 4], K∈[1, 4]; Standard cluster (2 Mbps): 600-ch; Video performance: 600; Picture performance: 350; Processor: 2 Xeon 64-bit multi-core processors; Cache: 64 GB standard, extendable to 384 GB; USB: 3 (2 × USB 3.0, 1 × USB 2.0); Data network interface: 6, 1000M Ethernet interface (8 × GbE or 4 × 10GbE is extendable); MiniSAS interface: 3, 12 Gbps SAS 3.0 interface; COM: 2 (1 for RS-232, 1 for RS-485); Management network interface: 1, 1000M Ethernet interface; HDD Model: Hikvision,DS40HKAI-VX1,4T;
Hikvision,DS60HKAI-VX1,6T;
Hikvision,DS80HKAI-VX1,8T;
Hikvision,DS100HKAI-VX1,10T;
Hikvision,DS160HKAI-VX1,16T;
DataSheet
Related products
-
StoragesAcheter via Whatsapp
WD Purple 4TB Surveillance Hard Drive
Add to cartA 3.5-inch internal hard drive designed for continuous 24/7 operation in high-definition video surveillance systems. It features AllFrame technology for improved video playback and supports multiple cameras.
-
StoragesAcheter via Whatsapp
Seagate Exos X10
Add to cartThis is an enterprise-class hard drive designed for hyperscale applications, cloud data centers, massive scale-out data centers, high-capacity density RAID storage, and enterprise backup and restore. It features helium-sealed drive technology for lower power consumption and weight, along with advanced data protection and management features.
-
StoragesAcheter via Whatsapp
Seagate Exos X14
Add to cartThis is an enterprise-class hard drive designed for hyperscale applications, cloud data centers, massive scale-out data centers, and high-capacity density RAID storage. It features helium-sealed drive technology for lower power consumption and weight, along with advanced data protection and management features like PowerBalance and Seagate Secure.
-
StoragesAcheter via Whatsapp

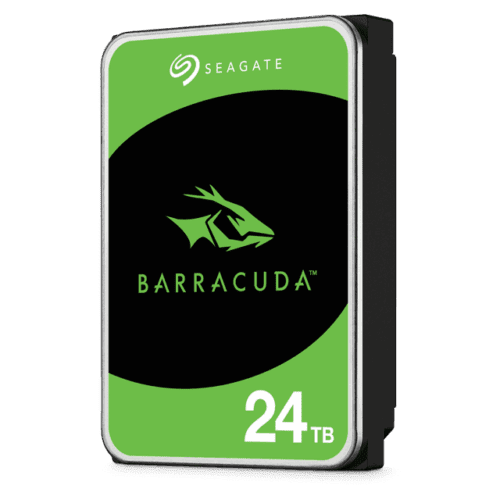

Seagate Barracuda
