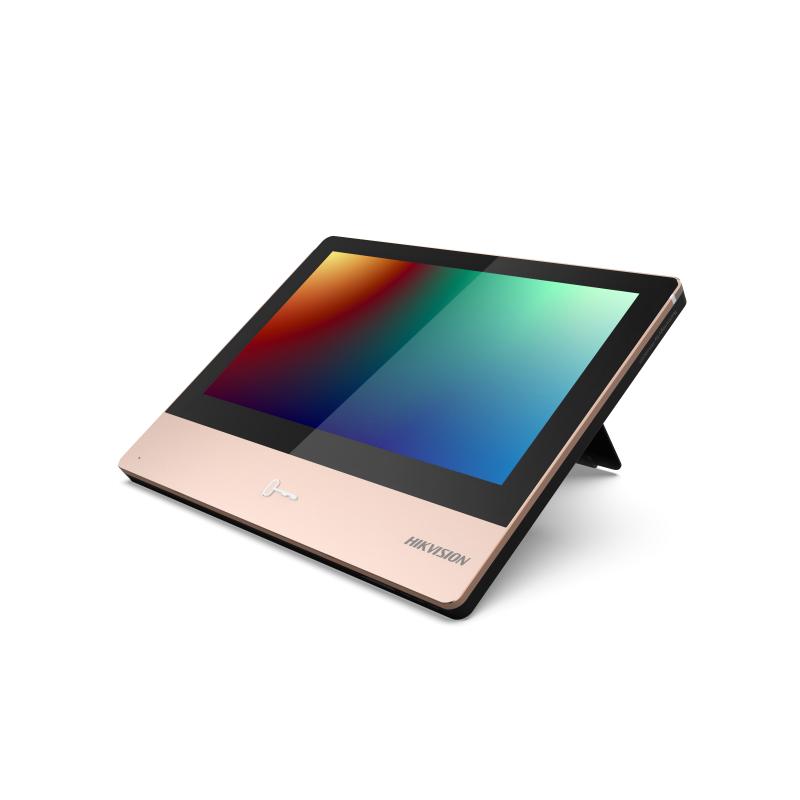

Hikvision Remote control pad DS-K7R83X

Specifications

Operating system: Embedded Linux system; Screen size: 7-inch; Operation method: Capacitive touch screen; Type: Colorful IPS LCD; Resolution: 1024 × 600; Communication protocol: TCP/IP; Wired network: 10/100 Mbps self-adaptive; Wi-Fi: Wi-Fi 802.11 b/g/n; Network interface: x 1 RJ-45 10/100 Mbps self-adaptive; Button: Physical button (self-define); Configuration via Web browser: Supported; Video intercom: Not supported; Power: IEEE802.3af, standard PoE
12 VDC/1 A; Power consumption: ≤ 7 W; Working temperature: -10 °C to 55 °C (14 °F to 131 °F); Working humidity: 10% to 90%; Dimensions: Without package 180 mm × 140 mm × 22.4 mm (7.09″ × 5.51″ × 0.88″)
With package (1 for 1) 251 mm x 211 mm x 141 mm (9.88″ × 8.31″ × 5.55″)
With package (1 for 12) 522 mm x 442 mm x 453 mm (20.55″ × 17.40″ × 17.83″); Installation: Surface mounting and Desktop placement; : Without package: 355 g
With package: 1050 g; Approval: CE/CE-LVD/CB/RoHS/REACH/WEEE; Power supply method: 12 VDC/1 A; Language: English, European Spanish, Thai, Japanese, Arabic; Module selection: NO
