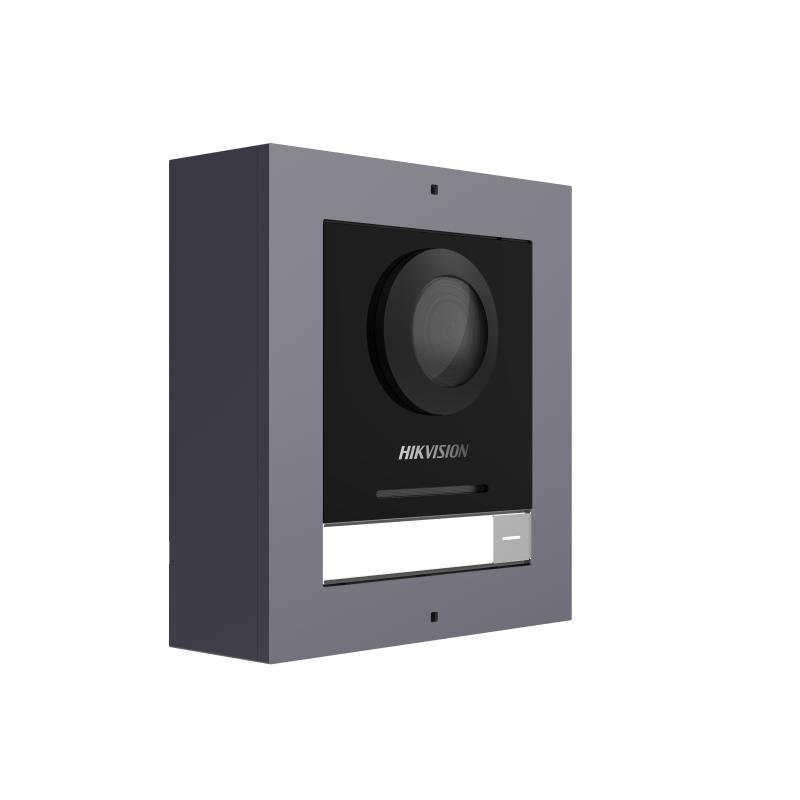

Hikvision Video Intercom KIT DS-KIS602(B)

Specifications

Operation system: Embedded Linux operation system; Flash: 32 MB; RAM: 256 MB; Camera: 2MP HD camera; Night vision: Low illumination IR supplement mode:3 m; Backlight compensation: Support; Digital noise reduction: Support; WDR: Support; Field of view: Horizontal: 146°, Vertical: 82°; Video Compression Standard: H.264; Motion detection: Support; Audio input: Built-in omnidirectional microphone; Audio output: Built-in loudspeaker; Audio quality: Noise suppression and echo cancellation; Audio compression standard: G.711 U, G.711 A; Audio compression Rate: 64 Kbps; Audio intercom: Two-way audio communication; Network protocol: TCP/IP, RSTP; Wired network: 10/100 Mbps Ethernet; Network interface: 1 RJ45; RS-485: 1 (1 for Hikvision’s sub module communication); Alarm input: 4 (2 exit butttons and 2 door contacts by default); Debugging port: 1; Lock control: 2 (2 relay, max to 30 V, 2 A); TAMPER switch: 1; Power interface: 12 VDC power output (max to 12 V, 500 mA); Power consumption: ≤ 5 W; Working temperature: -40° C to 60° C (-40° F to 140° F); Working humidity: 10% to 95%; Dimension: Device: 98 mm × 100 mm × 42 mm (3.86″ × 3.94″ × 1.65″)
Cover:117 × 107 × 4 mm (4.61″ × 4.21″ ×0.16″)
Installation Frame:117 × 107 × 32.7mm (4.61″ × 4.21″ ×1.29″); Installation: Surface mounting; Protection level: IP65; Indicator: 0; Power supply: IEEE802.3af, standard PoE
12 VDC; Operation system: Embedded Linux operation system; Memory: 128 MB; Flash: 32 MB; Display screen: 7-inch colorful TFT screen; Display resolution: 1024 × 600; Operation method: Capacitive touch screen; Audio input: Built-in omnidirectional microphone; Audio output: Built-in loudspeaker; Audio quality: Noise suppression and echo cancellation; Audio compression standard: G.711 U, G.711 A; Audio compression Rate: 64 Kbps; Wired network: 10/100 Mbps self-adaptive; Wireless network: Wi-Fi 802.11 b/g/n; Protocol: TCP/IP, SIP, RTSP; RS-485: 1 RJ-45 10/100 Mbps self-adaptive; RS-485: 1; Alarm input: 8-ch alarm inputs; Relay output: 2; TF card: Max to 32 G, SD 2.0 or lower version; Power consumption: ≤ 6 W; Working temperature: -10 °C to 55 °C (14 °F to 131 °F); Working humidity: 10% to 90%; Dimension (L x W x H): 200 mm × 140 mm × 23.6 mm (7.9″ × 5.5″ × 0.9″)
