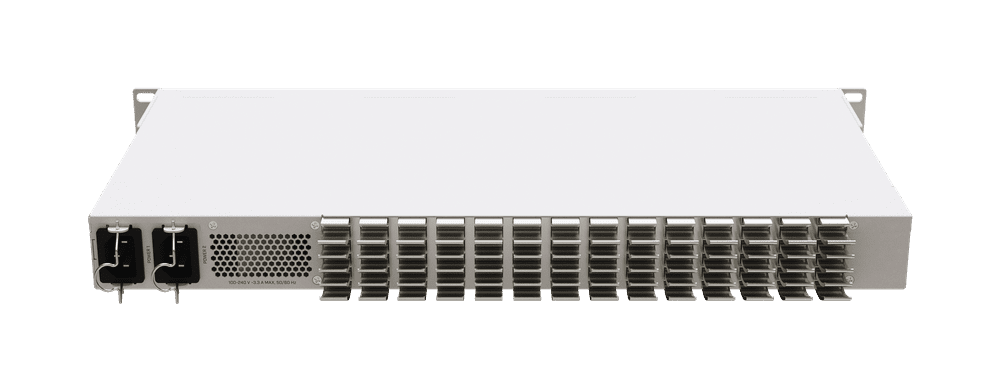

The MikroTik CRS326-4C+20G+2Q+RM is a versatile cloud router switch. It is engineered for mixed network environments. This robust device includes twenty dedicated Gigabit Ethernet ports. It also offers four combo ports; these are 10 Gigabit SFP+ or Gigabit Ethernet RJ45. Additionally, it features two 40 Gigabit QSFP+ ports. These provide ultra-fast fiber uplinks. The switch delivers an impressive non-blocking throughput.
Managing the MikroTik CRS326-4C+20G+2Q+RM is user-friendly. It includes a console port for direct access. This simplifies initial setup and troubleshooting tasks. The device features a dual hot-swappable power supply. This design ensures maximum uptime.
It provides crucial redundancy for continuous operation. Users can choose their preferred operating system. The switch supports both RouterOS and SwOS. RouterOS offers comprehensive Layer 3 routing features. SwOS provides straightforward Layer 2 switching capabilities. This dual-boot option gives excellent flexibility. It allows customization to specific network requirements. This adaptability makes the switch highly versatile.
This MikroTik switch excels in diverse applications. It is perfect for mixed copper and fiber setups.
MikroTik CRS326-4C+20G+2Q+RM manages high-bandwidth data efficiently. Its versatile port configuration supports varied devices. This ensures seamless communication and data flow.
Specifications
{
“Specifications – Product code”: “CRS326-4C+20G+2Q+RM”,
“Specifications – Architecture”: “MIPSBE”,
“Specifications – CPU”: “QCA9531”,
“Specifications – CPU core count”: “1”,
“Specifications – CPU nominal frequency”: “650 MHz”,
“Specifications – Switch chip model”: “98DX8332”,
“Specifications – RouterOS license”: “6”,
“Specifications – Operating System”: “RouterOS v7”,
“Specifications – Size of RAM”: “128 MB”,
“Specifications – Storage size”: “32 MB”,
“Specifications – Storage type”: “FLASH”,
“Specifications – MTBF”: “Approximately 200’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-20°C to 60°C”,
“Specifications – Suggested price”: “$999.00”,
“Powering – Number of AC inputs”: “2”,
“Powering – AC input range”: “100-240”,
“Powering – Number of PSU slots”: “2”,
“Powering – Frequency (Hz)”: “50-60”,
“Powering – Max power consumption”: “70 W”,
“Powering – Max power consumption without attachments”: “51 W”,
“Powering – Cooling type”: “2 fans”,
“Ethernet – 10/100 Ethernet ports”: “1”,
“Ethernet – Number of 2.5G Ethernet ports”: “20”,
“Ethernet – Number of Combo 10G Ethernet/ SFP+ ports”: “4* (2.5G ETH/10G SFP+)”,
“Fiber – Number of 40G QSFP+ ports”: “2”,
“Peripherals – Serial console port”: “RJ45”,
“Other – PCB temperature monitor”: “Yes”,
“Other – Voltage Monitor”: “Yes”,
“Certification & Approvals – Certification”: “CE, EAC, ROHS”,
“Certification & Approvals – IP”: “20”
}
