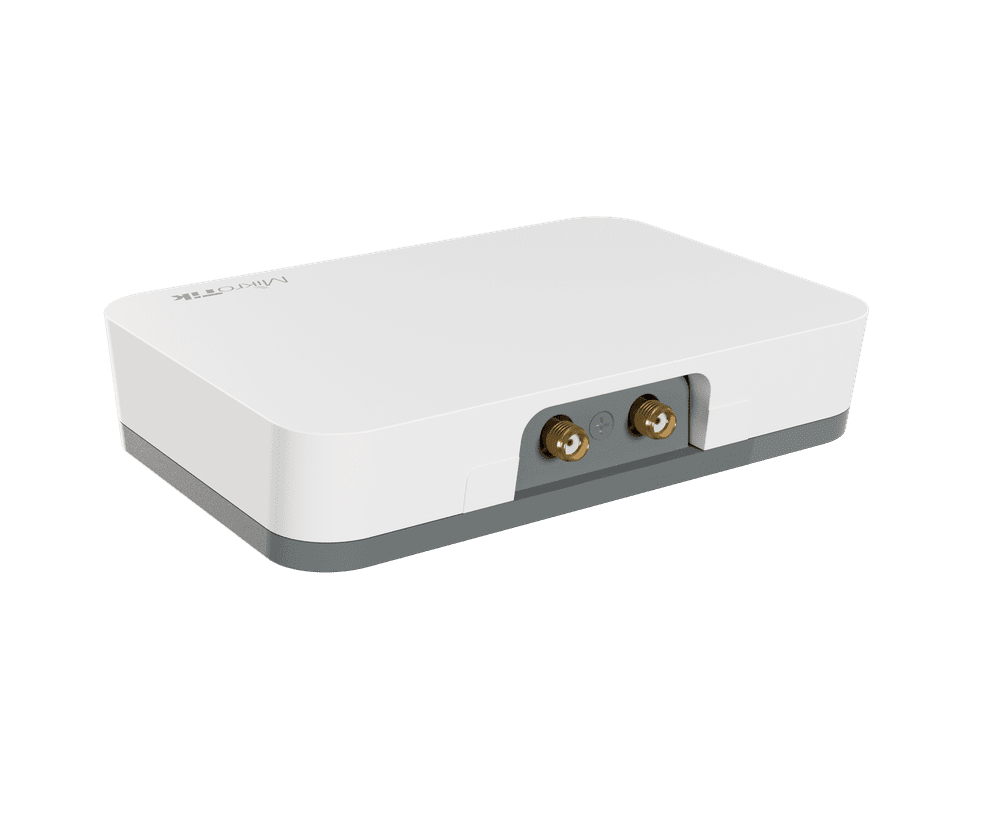

Unify your diverse IoT devices with the MikroTik KNOT, a truly universal IoT gateway now available at Beyond Innovate. This innovative device offers exceptional connectivity options and extensive protocol support, making it the ideal solution for a wide range of IoT applications.
The KNOT leverages low-cost, low-bandwidth Narrow Band (NB-IoT) and CAT-M cellular technologies, supported by numerous mobile operators worldwide. This makes it a cost-effective choice for remote monitoring and backup connections where high bandwidth isn’t necessary.
Beyond cellular, the KNOT boasts an impressive array of connectivity:
2.4 GHz Wireless: Provides Wi-Fi 4 (802.11b/g/n) for local wireless access.
Bluetooth 5.2: Enables asset tracking and telemetry by forwarding Bluetooth advertisement packets (iBeacon, Eddystone, etc.) to your TCP/IP network via HTTPS and MQTT.
Ethernet: Features two 10/100 Mbps Ethernet ports with PoE-in (802.3af/at) and PoE-out on one port, simplifying power and data distribution.
Modbus & RS485: Converts Modbus protocol to TCP, allowing you to bridge wired Modbus sensors (like electricity meters and relays) to your network.
GPIO & GNSS: Monitor onboard General Purpose Input/Outputs and utilize built-in GPS/GLONASS/BeiDou/Galileo for location-based applications.
Specifications
{
“Specifications – Product code”: “RB924i-2nD-BT5&BG77”,
“Specifications – Architecture”: “MIPSBE”,
“Specifications – CPU”: “QCA9531”,
“Specifications – CPU core count”: “1”,
“Specifications – CPU nominal frequency”: “650 MHz”,
“Specifications – Switch chip model”: “QCA9531”,
“Specifications – Dimensions”: “122 x 87 x 26 mm”,
“Specifications – RouterOS license”: “4”,
“Specifications – Operating System”: “RouterOS v7”,
“Specifications – Size of RAM”: “64 MB”,
“Specifications – Storage size”: “128 MB”,
“Specifications – Storage type”: “NAND”,
“Specifications – MTBF”: “Approximately 100’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-40°C to 70°C”,
“Specifications – Suggested price”: “$99.00”,
“Powering – MicroUSB input Voltage”: “5 V”,
“Powering – Number of DC inputs”: “3 (PoE-IN, MicroUSB, DC jack)”,
“Powering – DC jack input Voltage”: “12-57 V”,
“Powering – Max power consumption”: “18 W”,
“Powering – Max power consumption without attachments”: “5 W”,
“Powering – Cooling type”: “Passive”,
“Powering – PoE in”: “802.3af/at”,
“Powering – PoE in input Voltage”: “18-57 V”,
“PoE-out – PoE-out ports”: “Ether2”,
“PoE-out – PoE out”: “Passive PoE up to 57V”,
“PoE-out – Total output power”: “12”,
“Wireless specifications – Wireless 2.4 GHz Max data rate”: “300 Mbit/s”,
“Wireless specifications – Wireless 2.4 GHz number of chains”: “2”,
“Wireless specifications – Wireless 2.4 GHz standards”: “802.11b/g/n”,
“Wireless specifications – Antenna gain dBi for 2.4 GHz”: “1.5”,
“Wireless specifications – Wireless 2.4 GHz chip model”: “QCA9531”,
“Wireless specifications – Wireless 2.4 GHz generation”: “Wi-Fi 4”,
“Ethernet – 10/100 Ethernet ports”: “2”,
“Peripherals – Number of SIM slots”: “1 Modem (Nano SIM)”,
“Peripherals – Serial console port”: “RS485”,
“Peripherals – Number of USB ports”: “1”,
“Peripherals – USB slot type”: “microUSB type AB”,
“Peripherals – Max USB current (A)”: “1”,
“Other – PCB temperature monitor”: “Yes”,
“Other – Voltage Monitor”: “Yes”,
“Other – Bluetooth version”: “5.2”,
“Other – Bluetooth RF connector type”: “uUFL”,
“Certification & Approvals – Certification”: “CE, FCC, IC, EAC, ROHS”,
“Certification & Approvals – IP”: “IP20”,
“Wireless specifications – 1MBit/s”: “22”,
“Wireless specifications – 11MBit/s”: “22”,
“Wireless specifications – 6MBit/s”: “20”,
“Wireless specifications – 54MBit/s”: “18”,
“Wireless specifications – MCS0”: “20”,
“Wireless specifications – MCS7”: “16”
}
