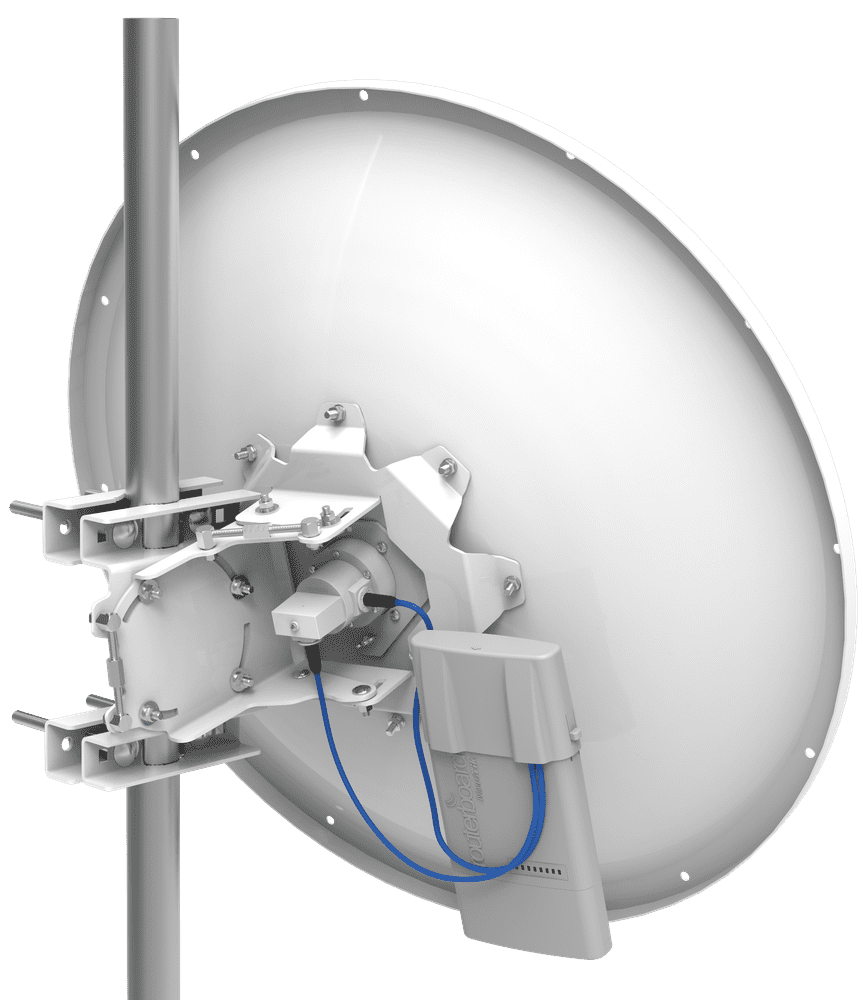

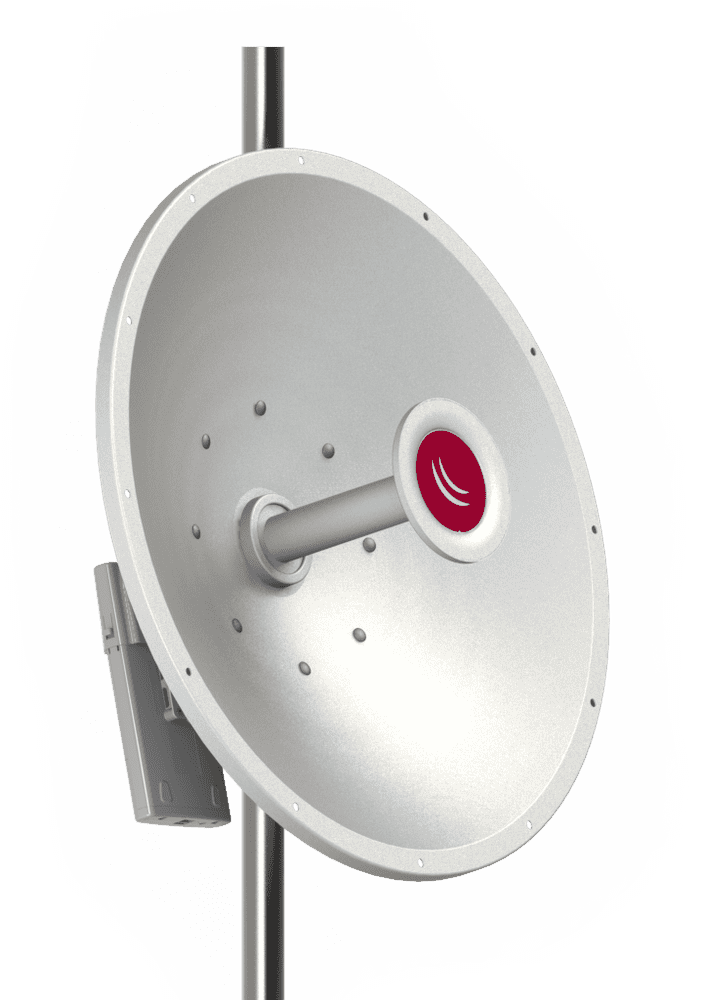

MikroTik mANT30 PA Antennas

Specifications

{
“Product specifications – Product code”: “MTAD-5G-30D3-PA”,
“Product specifications – Beamwidth”: “+/-2.5 deg”,
“Product specifications – Certification”: “CE, ROHS”,
“Product specifications – Connector”: “2x RP-SMA Female (outside thread)”,
“Product specifications – Cross Polarization”: “>40 dB”,
“Product specifications – Diameter x Depth”: “70 x 45cm (27.5 x 17.8in)”,
“Product specifications – Elevation adjustment range”: “+/- 15 deg”,
“Product specifications – Frequency Range”: “4.7-5.875 GHz”,
“Product specifications – Front-to-Back Ratio”: “>30 dB”,
“Product specifications – Impedance”: “50 ohms”,
“Product specifications – Outdoor Rating”: “ETSI EN 300 019-2-4”,
“Product specifications – Packaged size”: “73x73x20cm (29x29x8in)”,
“Product specifications – Packaged weight”: “8.4 kg (18,5)”,
“Product specifications – Polarization”: “Vertical and Horizontal”,
“Product specifications – Pole Mount Diameter Range”: “3 to 10cm (1.2 to 3.9in)”,
“Product specifications – Port to Port Isolation”: “>40dB min”,
“Product specifications – Power Rating”: “100W”,
“Product specifications – Reflector”: “Aluminum”,
“Product specifications – Standards”: “EN 302 326 DN1, DN2, DN3, DN5”,
“Product specifications – Tested ambient temperature”: “-50°C to 80°C(-49°F to 158°F)”,
“Product specifications – VSWR”: “≤ 1.4 typ, ≤ 1.8 max”,
“Product specifications – Weight”: “5.7kg (12.6 lbs)”,
“Product specifications – Wind Load (125 mph)”: “181.4kg (400 lbs), 50 kg at 40 m/s, 28 kg at 30 m/s”,
“Product specifications – Wind Survivability”: “201kph (125mph)”,
“Product specifications – Suggested price”: “$219”
}
