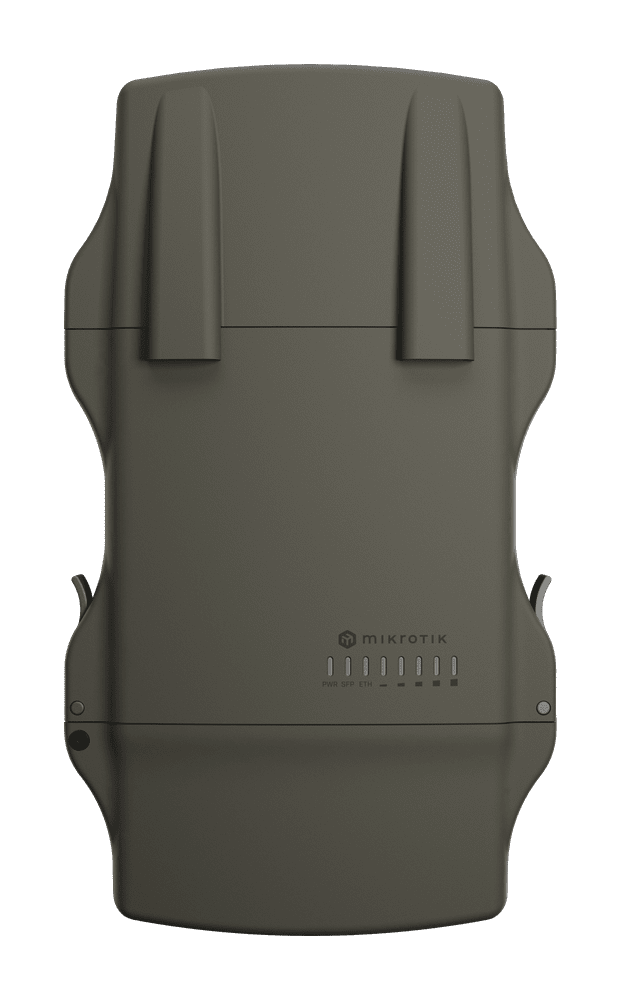

MikroTik NetMetal ax

Specifications

{
“Specifications – Product code”: “L23UGSR-5HaxD2HaxD-NM”,
“Specifications – Architecture”: “ARM”,
“Specifications – CPU”: “IPQ-5010”,
“Specifications – CPU core count”: “2”,
“Specifications – CPU nominal frequency”: “800 MHz”,
“Specifications – RouterOS license”: “4”,
“Specifications – Operating System”: “RouterOS v7”,
“Specifications – Size of RAM”: “256 MB”,
“Specifications – Storage size”: “128 MB”,
“Specifications – Storage type”: “NAND”,
“Specifications – MTBF”: “Approximately 200’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-40°C to 70°C”,
“Specifications – Suggested price”: “$169.00”,
“Powering – Number of DC inputs”: “2 (DC jack, PoE-IN)”,
“Powering – DC jack input Voltage”: “12-28 V”,
“Powering – Max power consumption”: “25 W”,
“Powering – Max power consumption without attachments”: “12 W”,
“Powering – Cooling type”: “Passive”,
“Powering – PoE in”: “Passive PoE”,
“Powering – PoE in input Voltage”: “18-28 V”,
“Wireless specifications – Wireless 2.4 GHz Max data rate”: “574 Mbit/s”,
“Wireless specifications – Wireless 2.4 GHz number of chains”: “2”,
“Wireless specifications – Wireless 2.4 GHz standards”: “802.11b/g/n/ax”,
“Wireless specifications – Wireless 2.4 GHz chip model”: “IPQ-5010”,
“Wireless specifications – Wireless 2.4 GHz generation”: “Wi-Fi 6”,
“Wireless specifications – Wireless 5 GHz Max data rate”: “2400 Mbit/s”,
“Wireless specifications – Wireless 5 GHz number of chains”: “2”,
“Wireless specifications – Wireless 5 GHz standards”: “802.11a/n/ac/ax”,
“Wireless specifications – Wireless 5 GHz chip model”: “QCN-6102”,
“Wireless specifications – Wireless 5 GHz generation”: “Wi-Fi 6”,
“Ethernet – 10/100/1000 Ethernet ports”: “1”,
“Fiber – SFP ports”: “1 (2.5G supported)”,
“Peripherals – Number of SIM slots”: “1 Modem (Nano SIM)”,
“Peripherals – MiniPCI-e slots”: “1”,
“Peripherals – Number of USB ports”: “1”,
“Peripherals – USB Power Reset”: “Yes”,
“Peripherals – USB slot type”: “USB type A”,
“Peripherals – Max USB current (A)”: “1.5”,
“Other – PCB temperature monitor”: “Yes”,
“Other – Voltage Monitor”: “Yes”,
“Other – Beeper”: “Yes”,
“Certification & Approvals – Certification”: “CE, FCC, IC, EAC, ROHS”,
“Certification & Approvals – IP”: “66”,
“Wireless specifications – 1MBit/s”: “27”,
“Wireless specifications – 11MBit/s”: “27”,
“Wireless specifications – 6MBit/s”: “28”,
“Wireless specifications – 54MBit/s”: “26”,
“Wireless specifications – MCS0”: “28”,
“Wireless specifications – MCS7”: “25”,
“Wireless specifications – MCS9”: “23”,
“Wireless specifications – MCS11”: “20”
}
