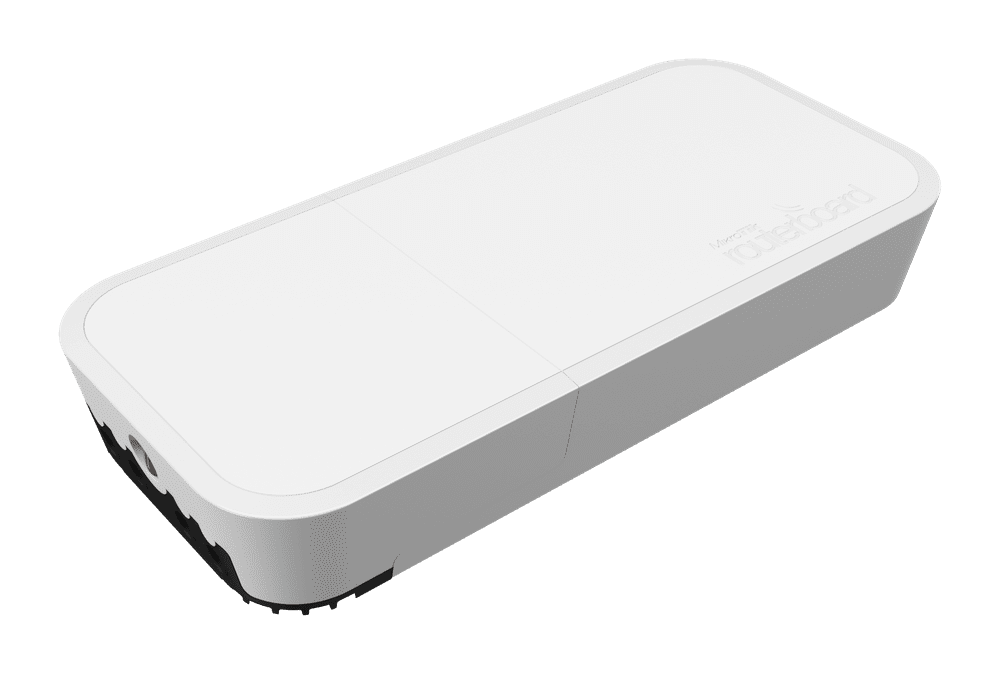

Elevate your wireless network with the MikroTik wAP ax, a high-performance Wi-Fi 6 access point available at Beyond Innovate. Engineered for both indoor and outdoor use, this compact and durable device delivers fast and reliable connectivity in even the most challenging environments.
The wAP ax supports the latest Wi-Fi 6 (802.11ax) standard across both 2.4 GHz and 5 GHz bands, offering significantly improved speeds, efficiency, and security. Experience up to 574 Mbps on the 2.4 GHz band and an impressive 2400 Mbps on the 5 GHz band, ensuring smooth streaming, gaming, and browsing for all your devices. Its dual-chain (2×2 MIMO) radio and high-gain antennas (up to 7 dBi on 5 GHz) ensure extensive and reliable coverage.
Powered by a modern dual-core ARM CPU and running RouterOS v7 (License Level 4), the wAP ax provides stable internet and excellent VPN performance. It features two Gigabit Ethernet ports, with flexible power options including 802.3af/at PoE-in and a DC jack.
Designed for stealth and durability, the wAP ax boasts an IP54-rated weatherproof enclosure, making it resistant to dust, rain, and extreme temperatures. Its discreet design allows it to blend seamlessly into any setting, and it can be securely mounted on walls, ceilings, or poles, with an anti-vandal screw for added security.
Choose the MikroTik wAP ax for a cutting-edge, robust, and versatile Wi-Fi 6 solution that brings high-speed, secure wireless access wherever you need it.
Specifications
{
“Specifications – Product code”: “wAPG-5HaxD2HaxD”,
“Specifications – Architecture”: “ARM”,
“Specifications – CPU”: “IPQ-5010”,
“Specifications – CPU core count”: “2”,
“Specifications – CPU nominal frequency”: “800 MHz”,
“Specifications – RouterOS license”: “4”,
“Specifications – Operating System”: “RouterOS v7”,
“Specifications – Size of RAM”: “256 MB”,
“Specifications – Storage size”: “128 MB”,
“Specifications – Storage type”: “NAND”,
“Specifications – MTBF”: “Approximately 100’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-40°C to 70°C”,
“Specifications – Suggested price”: “$89.00”,
“Wireless capabilities – Wireless 2.4 GHz Max data rate”: “574 Mbit/s”,
“Wireless capabilities – Wireless 2.4 GHz number of chains”: “2”,
“Wireless capabilities – Wireless 2.4 GHz standards”: “802.11b/g/n/ax”,
“Wireless capabilities – Antenna gain dBi for 2.4 GHz”: “6.9”,
“Wireless capabilities – Wireless 2.4 GHz chip model”: “IPQ-5010”,
“Wireless capabilities – Wireless 2.4 GHz generation”: “Wi-Fi 6”,
“Wireless capabilities – Wireless 5 GHz Max data rate”: “2400 Mbit/s”,
“Wireless capabilities – Wireless 5 GHz number of chains”: “2”,
“Wireless capabilities – Wireless 5 GHz standards”: “802.11a/n/ac/ax”,
“Wireless capabilities – Antenna gain dBi for 5 GHz”: “7”,
“Wireless capabilities – Wireless 5 GHz chip model”: “QCN-6102”,
“Wireless capabilities – Wireless 5 GHz generation”: “Wi-Fi 6”,
“Wireless capabilities – WiFi speed”: “AX3000”,
“Ethernet – 10/100/1000 Ethernet ports”: “2”,
“Powering – Number of DC inputs”: “2 (PoE-IN, DC jack)”,
“Powering – DC jack input Voltage”: “12-57 V”,
“Powering – Max power consumption”: “9 W”,
“Powering – Max power consumption without attachments”: “9 W”,
“Powering – Cooling type”: “Passive”,
“Powering – PoE in”: “802.3af/at”,
“Powering – PoE in input Voltage”: “18-57 V”,
“Certification & Approvals – Certification”: “CE, FCC, IC, EAC, ROHS”,
“Certification & Approvals – IP”: “54”,
“Other – CPU temperature monitor”: “Yes”,
“Other – PCB temperature monitor”: “Yes”,
“Other – Voltage Monitor”: “Yes”,
“Wireless specifications – 1MBit/s”: “23”,
“Wireless specifications – 11MBit/s”: “23”,
“Wireless specifications – 6MBit/s”: “23”,
“Wireless specifications – 54MBit/s”: “20”,
“Wireless specifications – MCS0”: “23”,
“Wireless specifications – MCS7”: “19”,
“Wireless specifications – MCS9”: “18”,
“Wireless specifications – MCS11”: “16”
}
